9MM
Size: 2420 X 1220 X 9 mm
Weight: 4 Kg / Panel
Density: 150.5 Kg/m³
NRC: upto 0.6
12MM
Size: 2420 X 1220 X 12 mm
Weight: 5 Kg / Panel
Density: 200.6 Kg/m³
NRC: upto 0.85

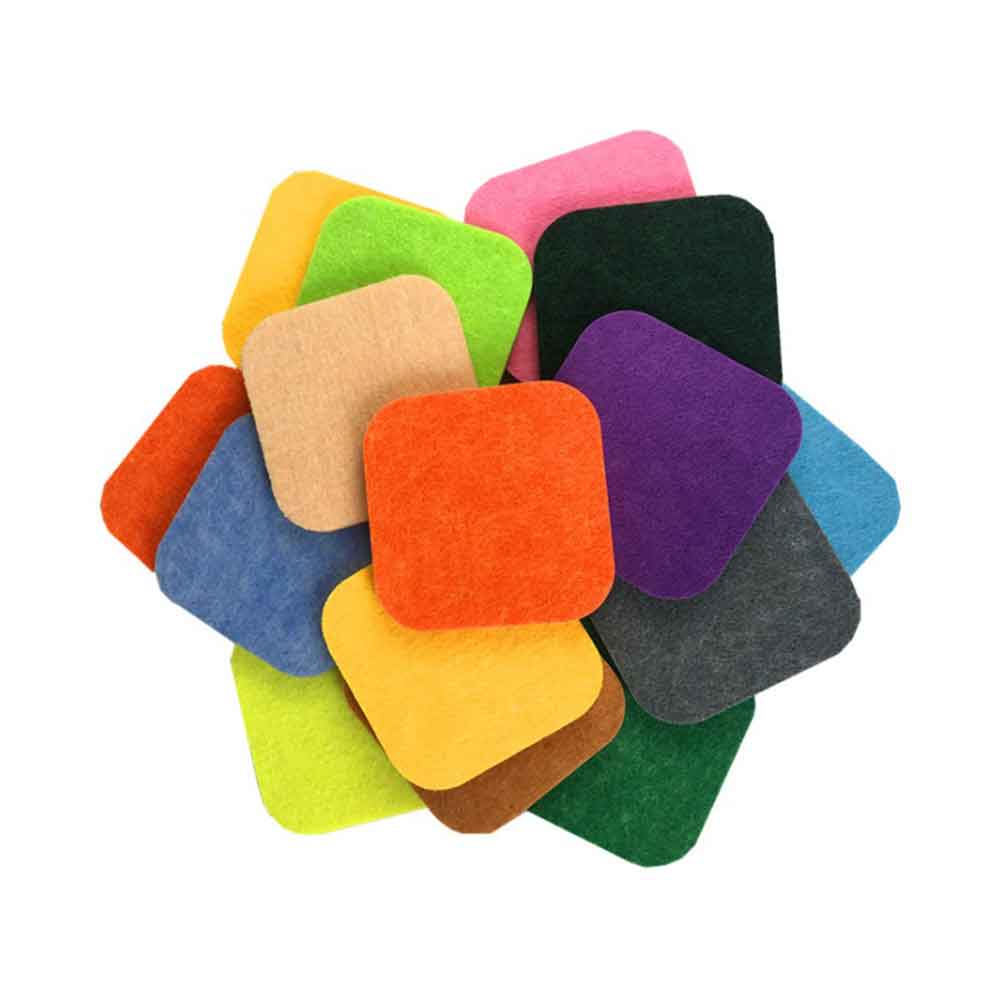

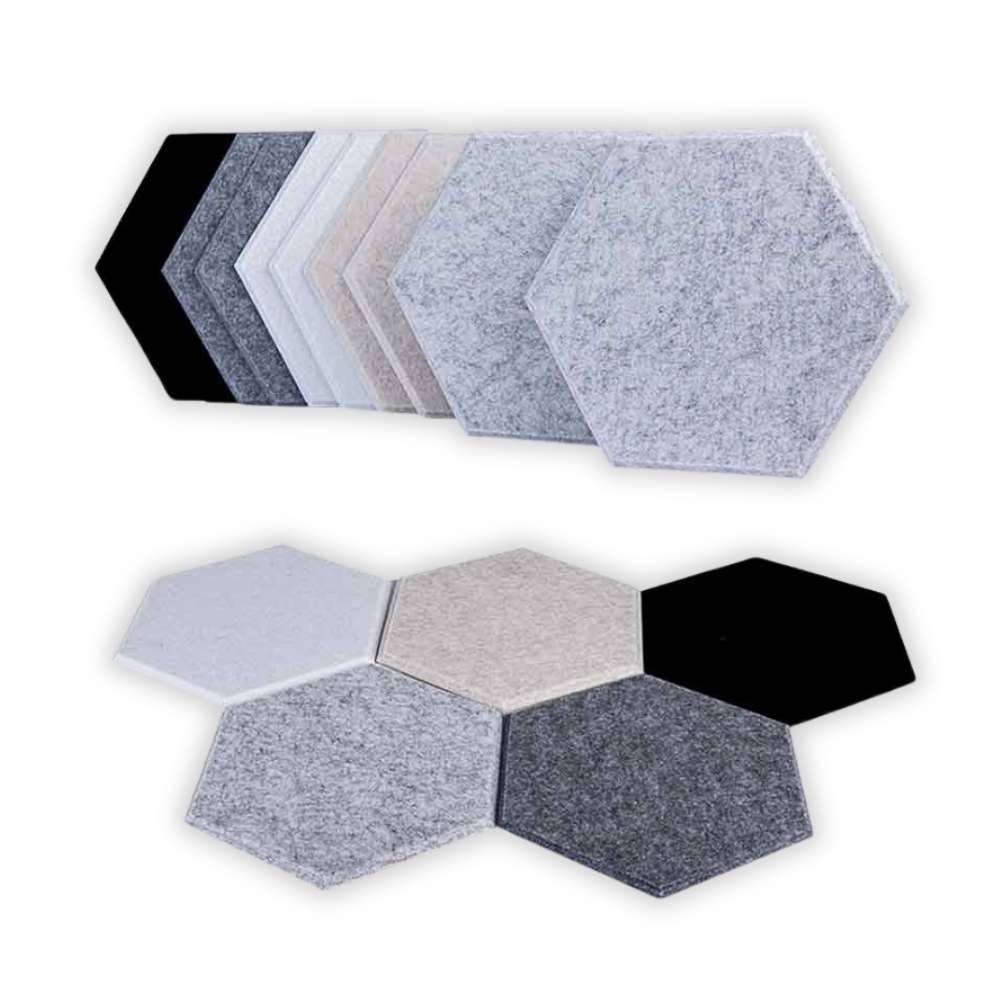

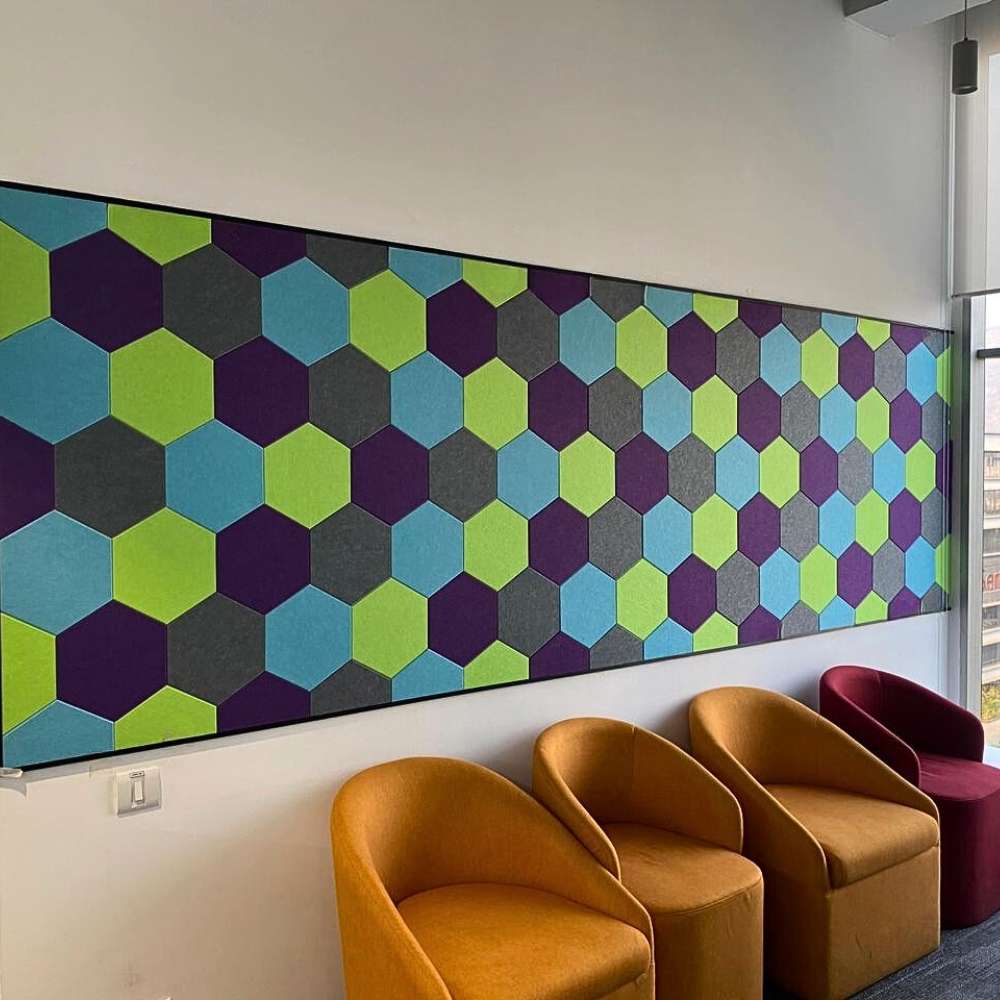

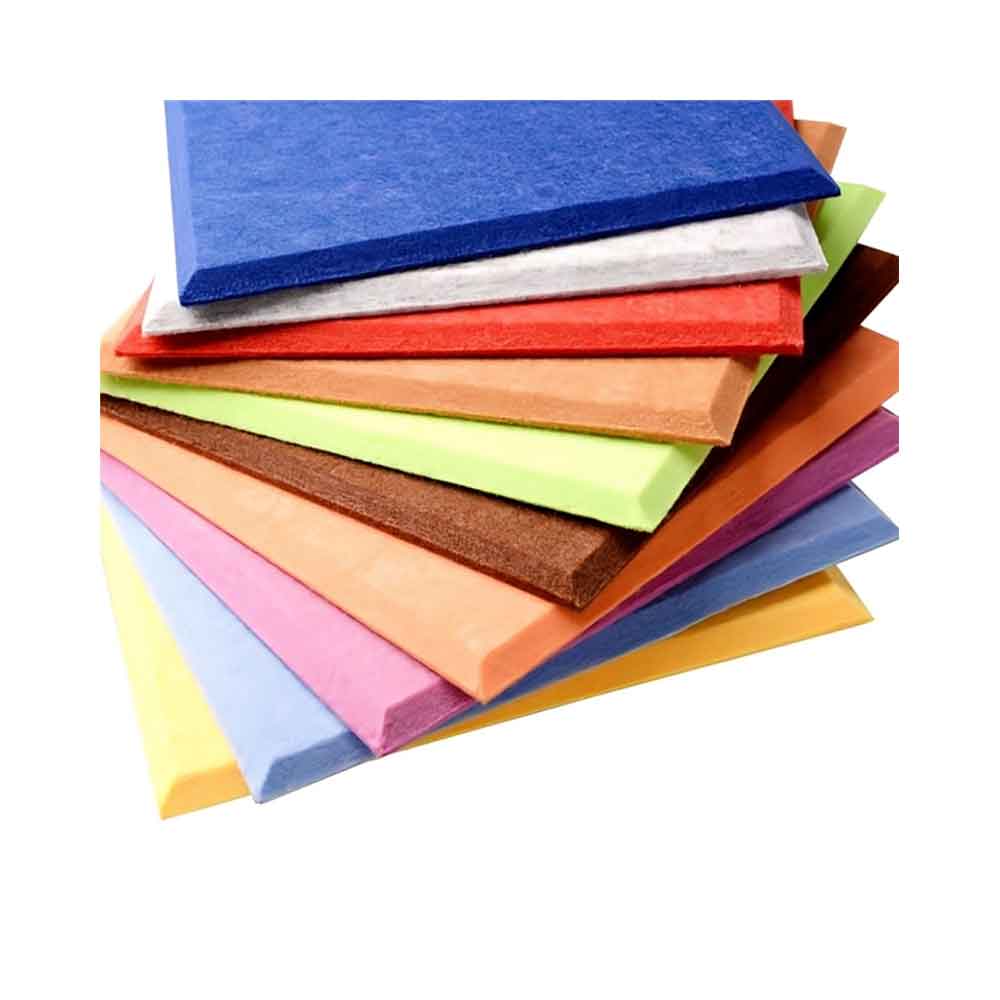

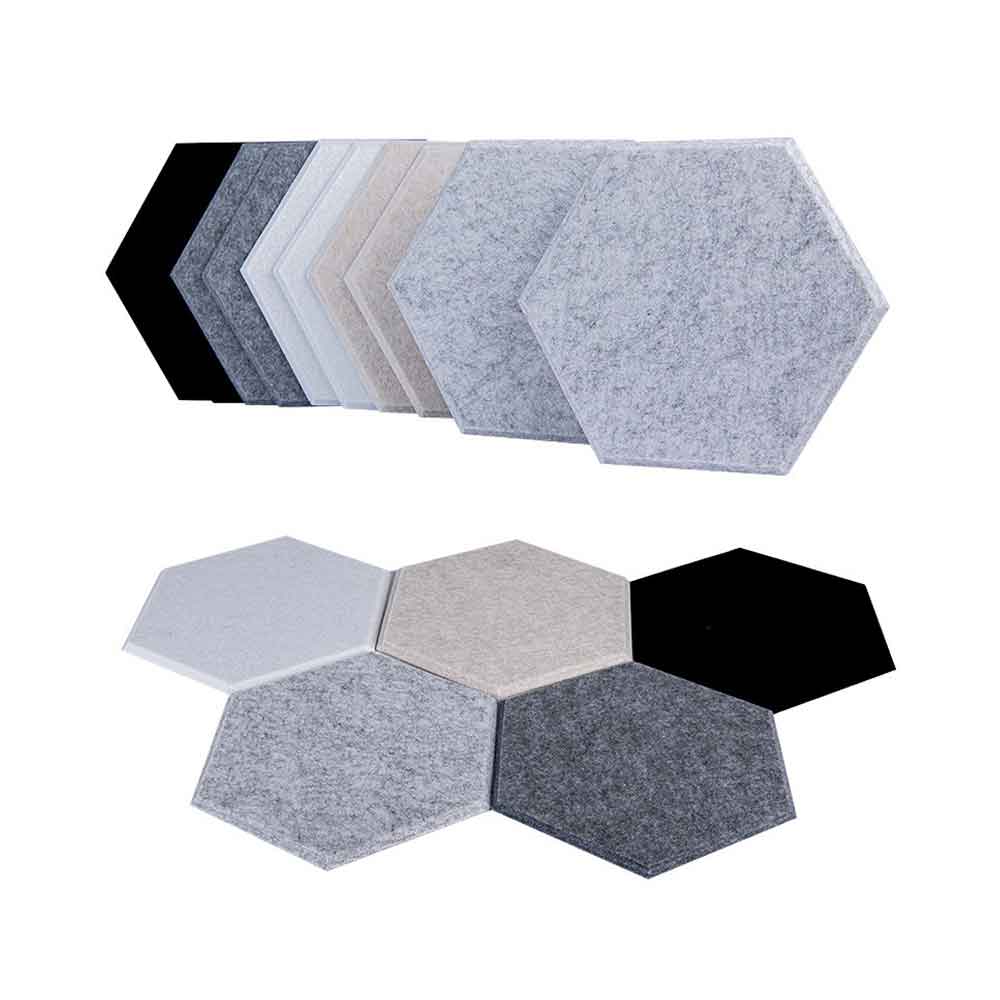

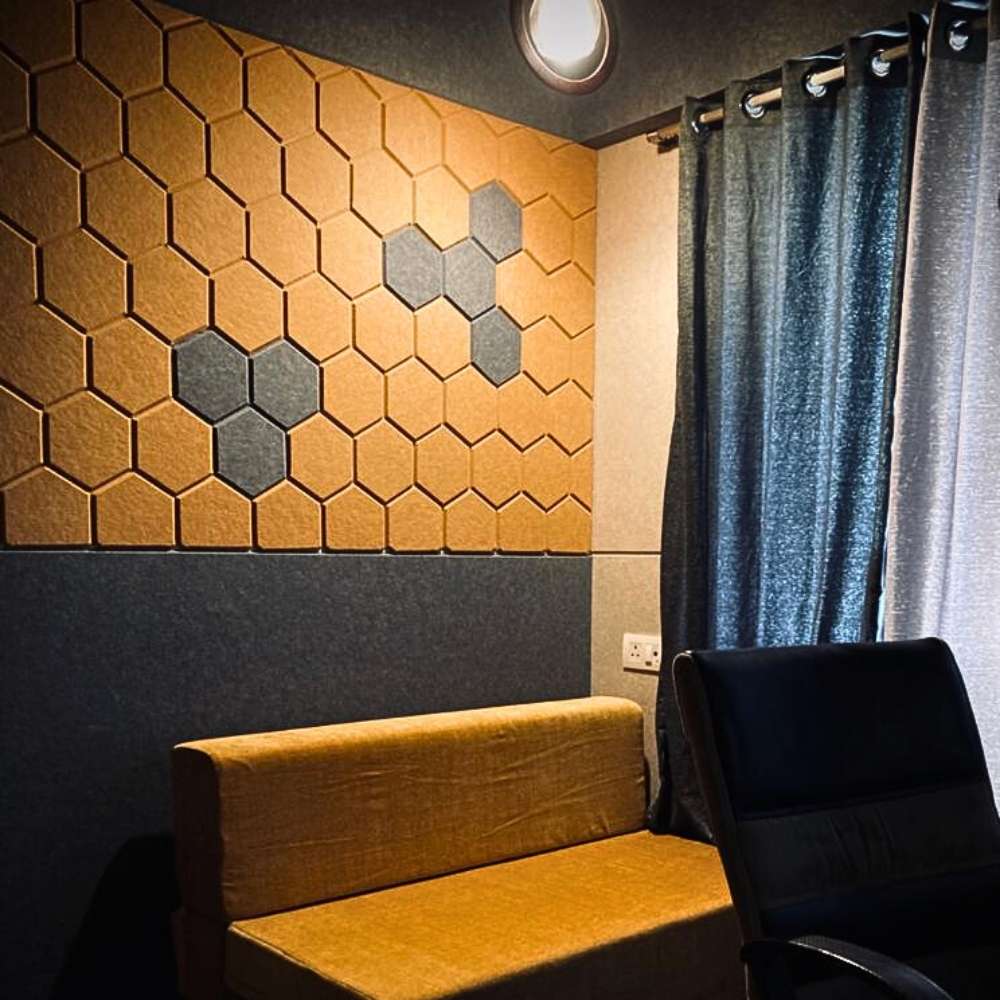

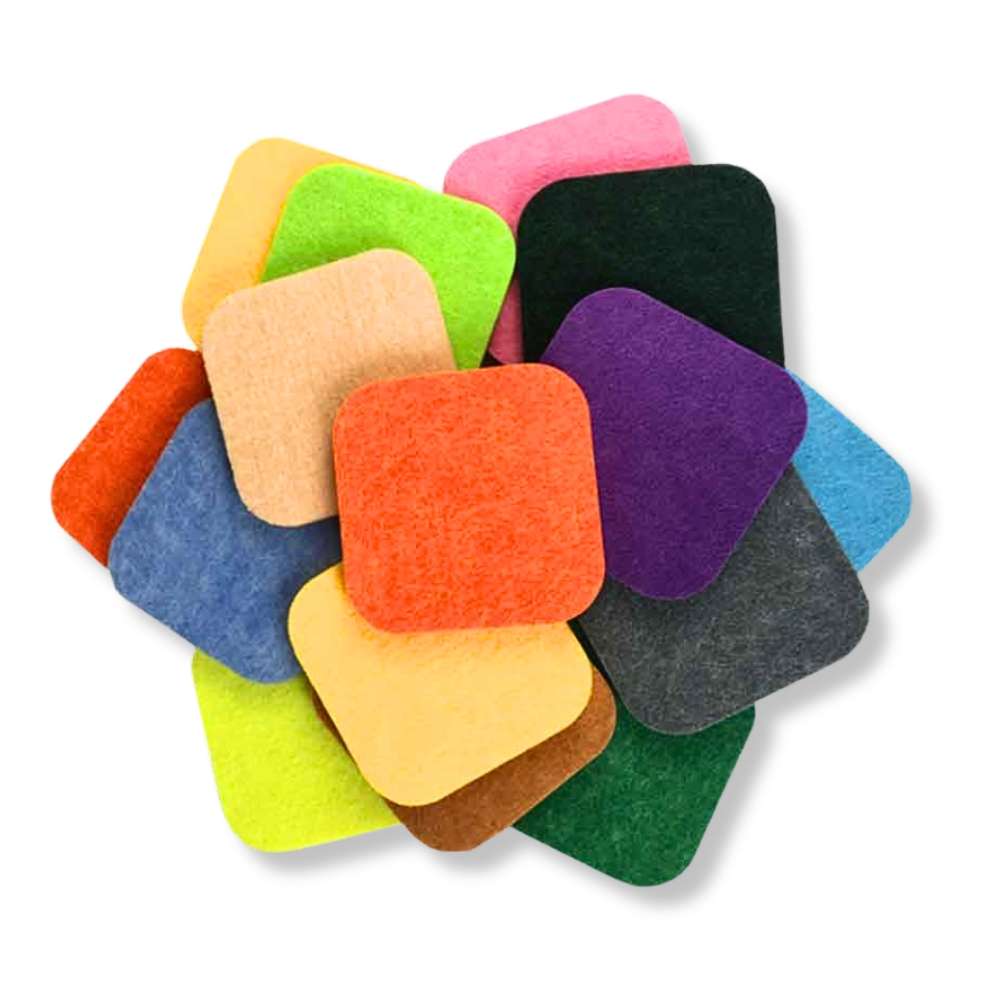

Acoustic Tile Panels

Acoustic tile panels are high-performance sound-absorbing solutions designed to improve sound quality in any space. Manufactured from durable, sound-dampening materials, these panels effectively reduce noise, echoes, and reverberation, creating a well-controlled acoustic environment. Suitable for both ceilings and walls, acoustic tile panels integrate seamlessly into a variety of settings such as offices, schools, recording studios, and public spaces. Available in multiple sizes, colors, and finishes, they not only enhance acoustic performance but also add to the overall aesthetic appeal of the space.

KEY FEATURES
  • Outstanding sound absorption with amazing look
  • Formaldehyde free
  • Fire retardant (self-extinguishing)
  • No toxic gas when burning
  • 100% Polyester Fibr
INSTALLATION METHOD

 Surface Preparation

  • Ensure wall/ceiling surface is clean, dry, level, and dust-free.
  • Mark layout grid as per approved drawing.

 Adhesive Application

  • Apply Synthetic Rubber Adhesive on the back of the acoustic tile in dot or bead pattern (approx. 25–30 mm spacing).
  • Apply additional adhesive along tile edges for better bonding.

 Fixing the Tile

  • Position the tile carefully as per marking.
  • Press firmly against the surface to ensure full contact.
  • Hold for a few seconds to secure initial grip.

 Alignment & Finishing

  • Check alignment and joint spacing.
  • Remove excess adhesive immediately.
