Acoustic Ceilings
Acoustic Ceiling Clouds
Horizontal absorbers hung below a hard soffit
Overview
Acoustic Ceiling Clouds
Flat PET panels suspended below the slab. They treat the largest untreated surface in most rooms while leaving services, lighting and sprinklers reachable.
In a typical office fit-out the ceiling is the biggest hard surface and the hardest one to give up, because everything runs through it. Clouds solve that: cover part of the area, leave the rest open for access, and take most of the reverberation out anyway.
A cloud absorbs on both faces, which is why partial coverage works so well. The gap between clouds is not wasted area — sound reaches the top face through it.
Hung on cable with adjustable grips, so they level quickly and re-level after the ceiling contractor has been back through. Cut to size from the full board.

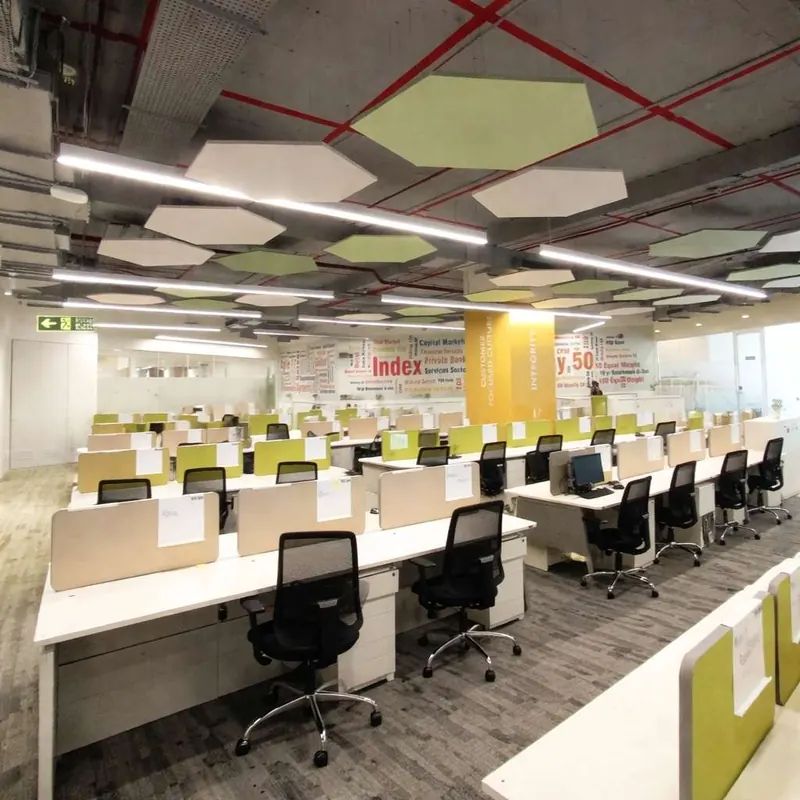

Typical applications
- Open-plan offices
- Restaurants
- Classrooms
- Atriums
Technical information
Specification
Figures as published by Silence Acoustic. We confirm them against your specification and supply test reports on request.
| Material | 100% polyester fibre, recycled PET |
|---|---|
| Panel size | 2420 × 1220 mm |
| Thickness | 9 mm / 12 mm |
| Weight | 5.5 kg (9 mm) / 7.5 kg (12 mm) per panel |
| Density | 205 kg/m³ (9 mm) / 210 kg/m³ (12 mm) |
| NRC | up to 0.6 (9 mm) / up to 0.85 (12 mm) |
| Suspension | GI / SS wire, 2.5–3 mm, to eye bolts on the panel frame |
| Absorption | Horizontal, both faces exposed |
