Acoustic Designer Panels
CNC-cut patterns: V-groove, U-groove, fluted, bespoke
Overview
Acoustic Designer Panels
Absorption with a cut pattern in it. The routing is done from your drawing, so the panel reads as part of the interior rather than as acoustic treatment bolted onto it.

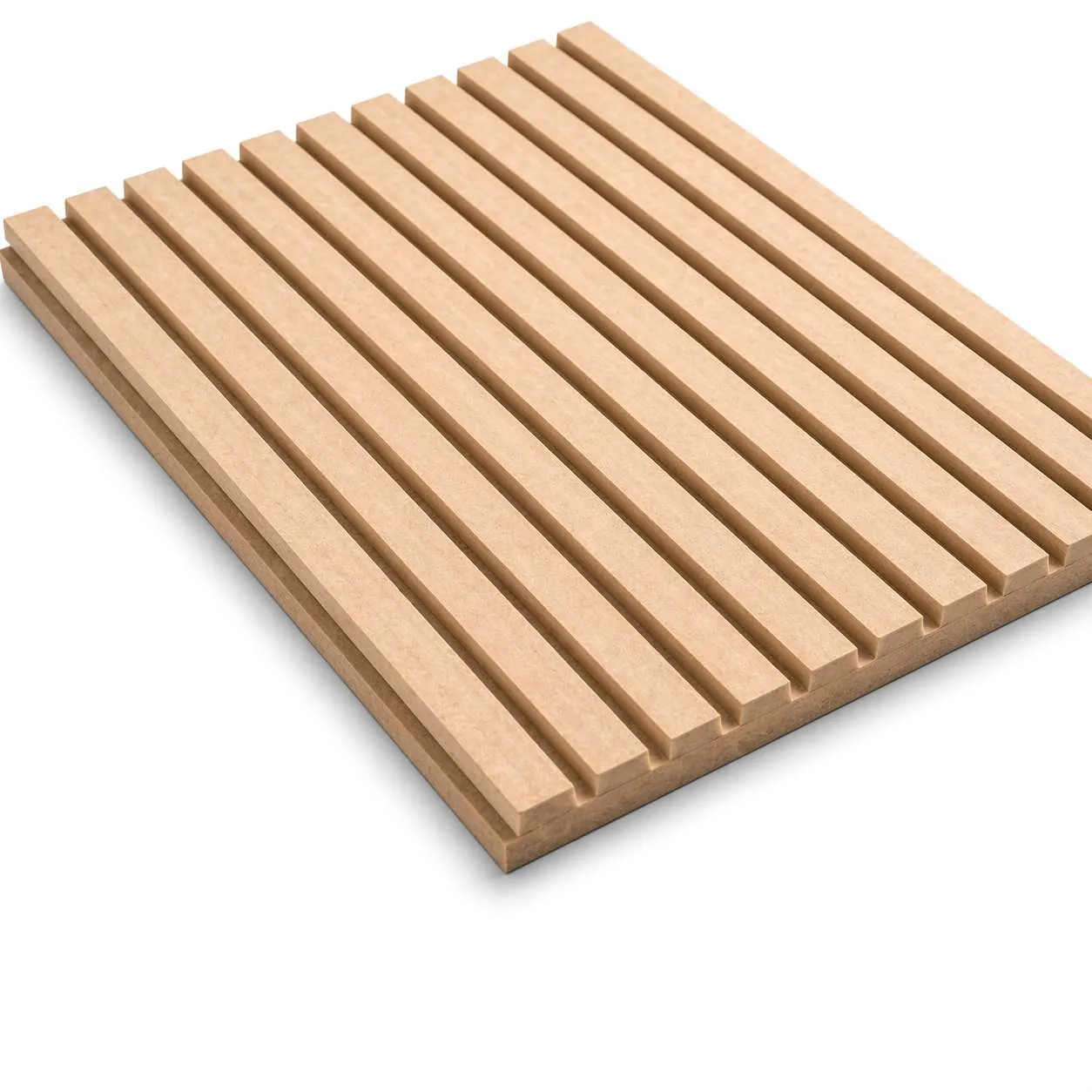

V-groove and U-groove profiles break up the flat plane and scatter the first reflection, which helps in rooms where a hard mirror-point would otherwise need a thicker absorber.
Fluted and custom profiles are cut to a supplied vector file. Send us the DXF and we will come back with a cutting layout, a material take-off and a price before anything is committed.
Cut from the same recycled PET board as the plain panel, so the absorption figures below are the starting point — the routing adds surface area rather than taking it away.
Typical applications
- Boardrooms
- Hotel lobbies
- Auditoriums
- Premium offices
Technical information
Specification
Figures as published by Silence Acoustic. We confirm them against your specification and supply test reports on request.
| Material | 100% polyester fibre, recycled PET |
|---|---|
| Panel size | 2420 × 1220 mm |
| Thickness | 9 mm / 12 mm |
| Weight | 5.5 kg (9 mm) / 7.5 kg (12 mm) per panel |
| Density | 205 kg/m³ (9 mm) / 210 kg/m³ (12 mm) |
| NRC | up to 0.6 (9 mm) / up to 0.85 (12 mm) |
| Cutting | CNC laser and router, from DXF |
| Patterns | V-groove, U-groove, fluted, custom |
