Acoustic Screen Partitions

Size: 2400 X 1200 X 9 mm

Weight: 4 Kg / Panel

Density: 150.5 Kg/m³

NRC: upto 0.6

Size: 2400 X 1200 X 12 mm

Weight: 5 Kg / Panel

Density: 200.6 Kg/m³

NRC: upto 0.85

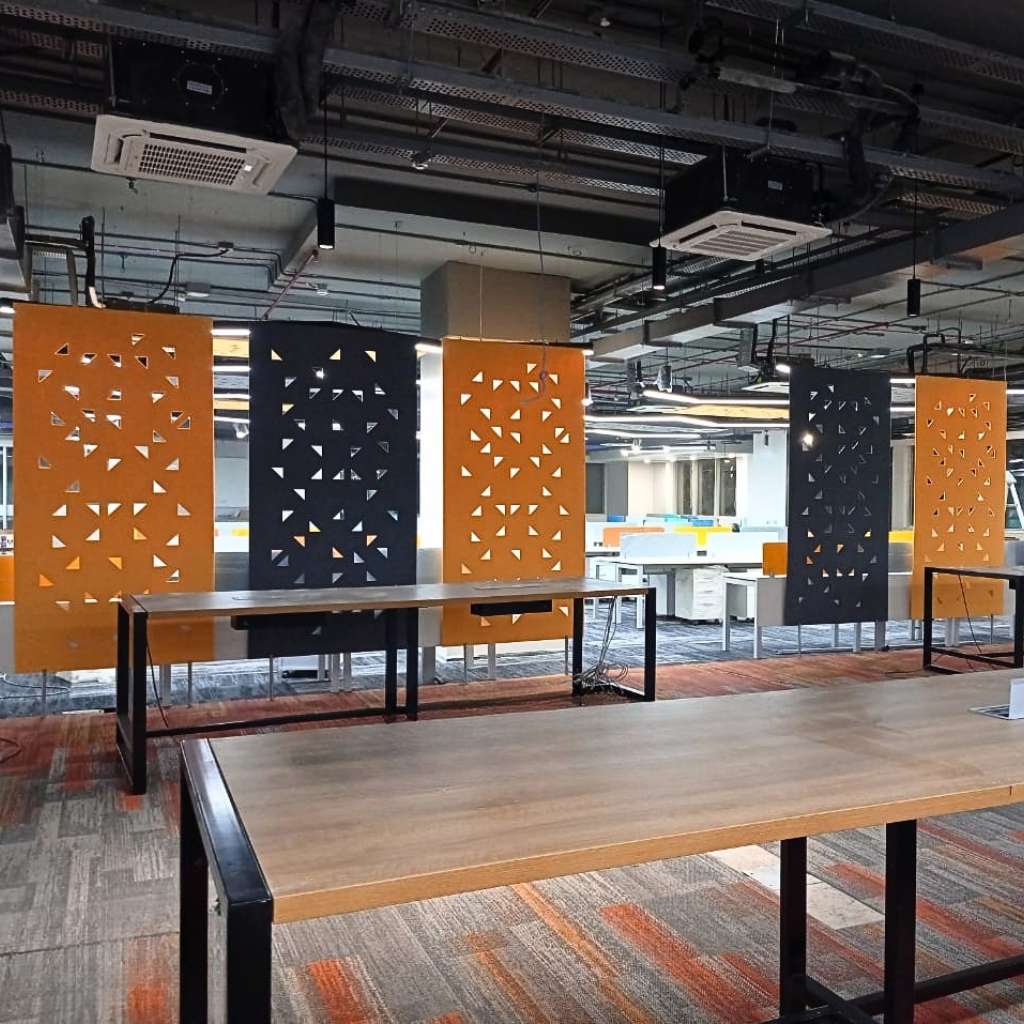

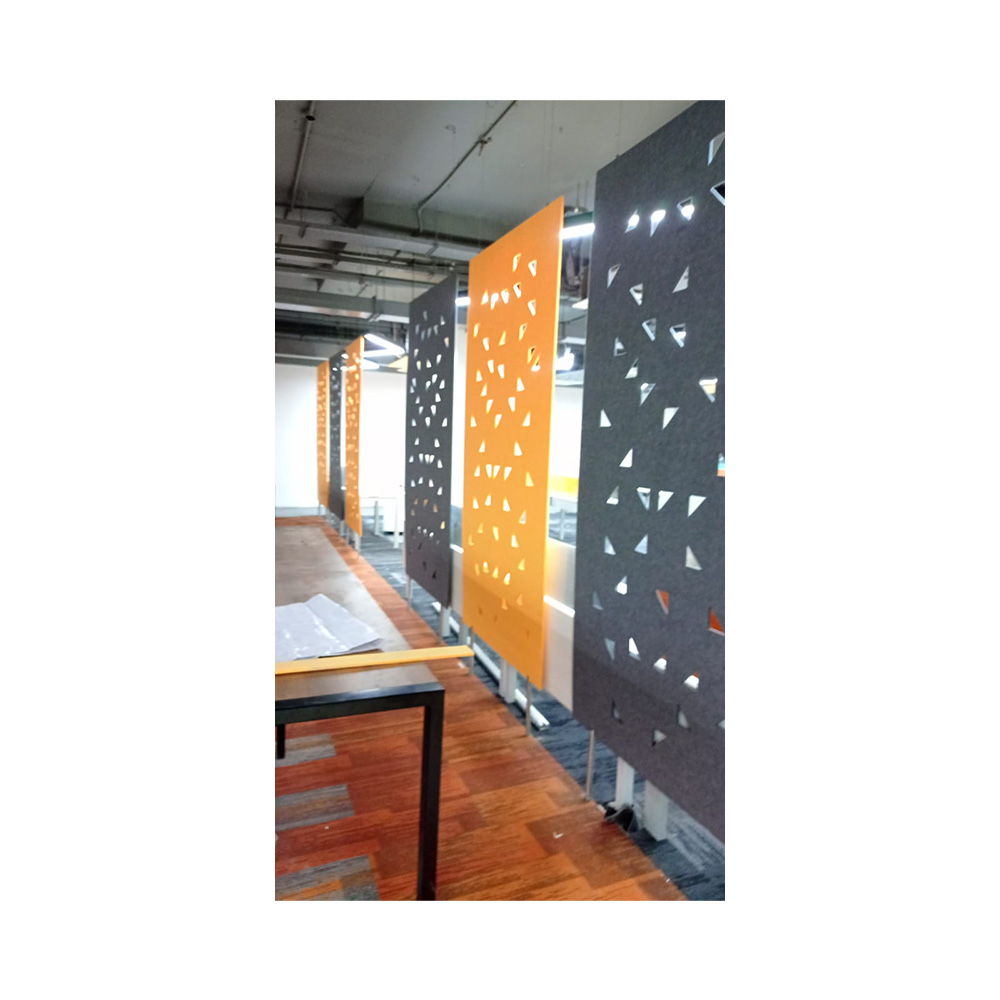

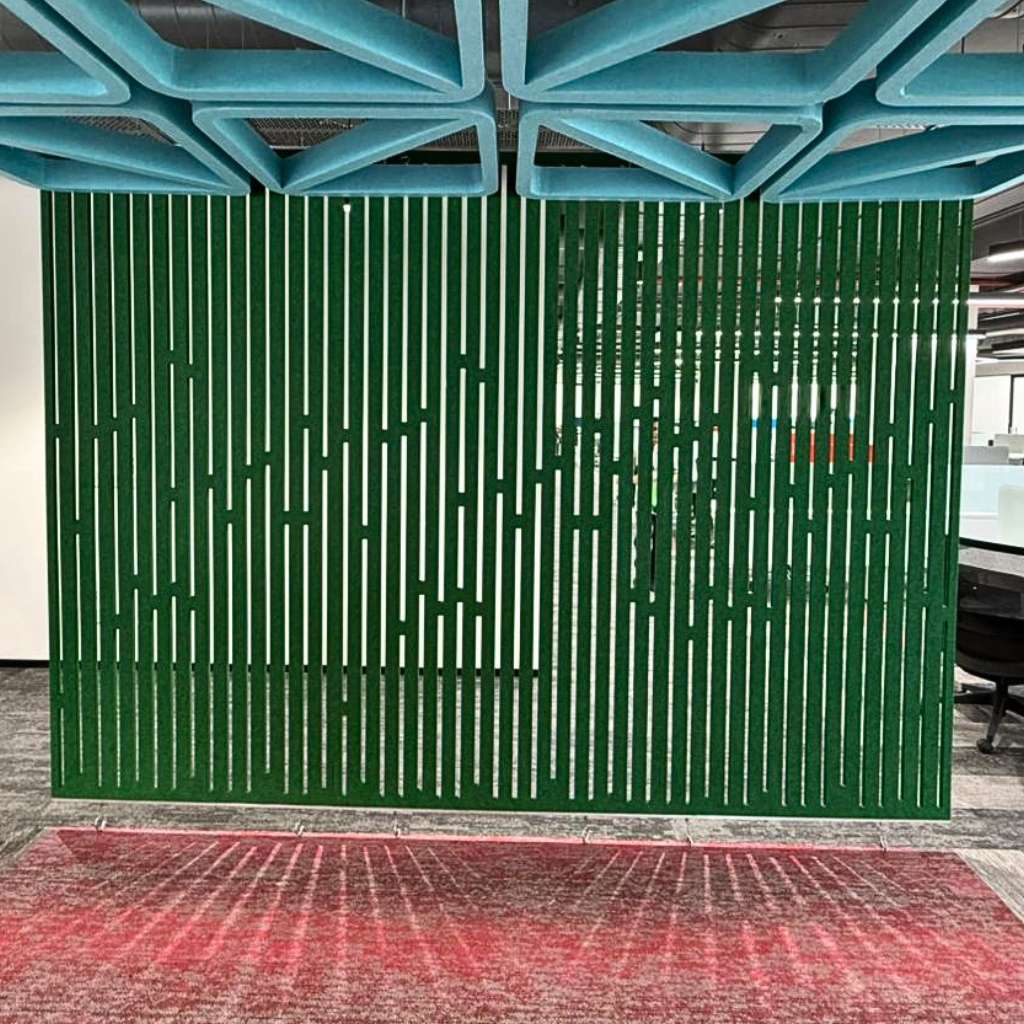

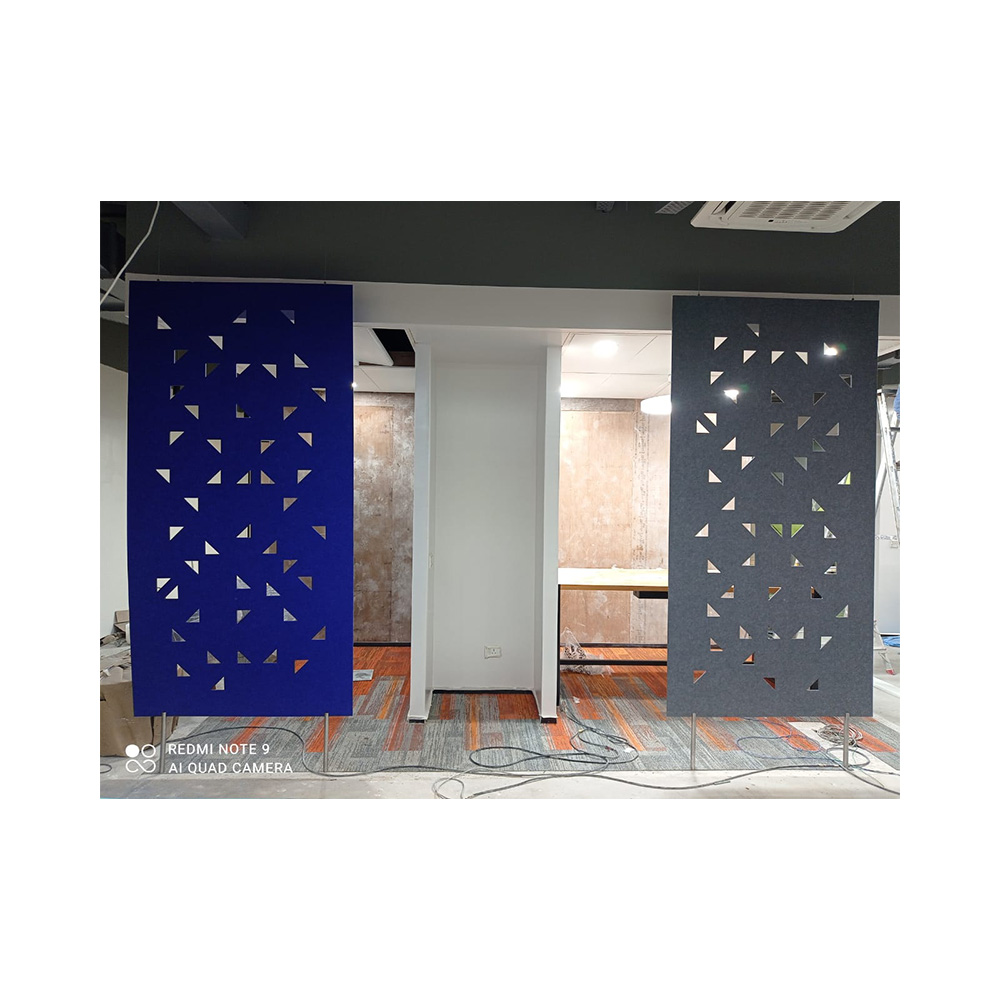

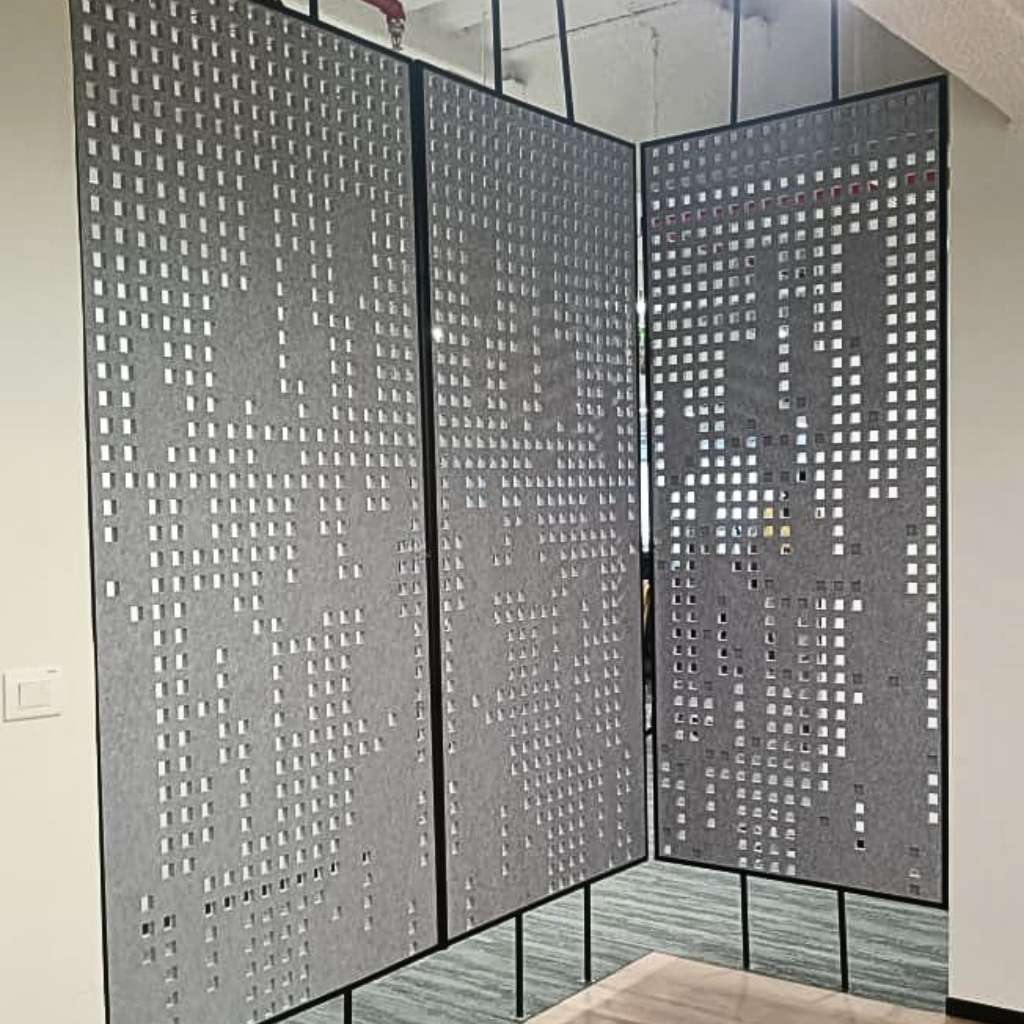

Our acoustic screen partitions offer an ideal combination of privacy and noise reduction, making them perfect for open-plan offices and shared workspaces. Crafted using high-quality sound-absorbing materials, they effectively minimize distractions and help enhance focus and productivity. Featuring sleek, modern designs, these partitions blend seamlessly into any interior environment. Transform your workspace into a calm, comfortable, and efficient area with our acoustic screen partitions.

KEY FEATURES

Outstanding sound absorption with amazing looks
Formaldehyde free
Fire retardant (self-extinguishing)
No toxic gas when burning
100% Polyester Fibre

Installation Method

Freestanding Type (Most Common)

Step 1: Layout Marking

Mark partition positions as per approved layout.
Ensure floor surface is level.

Step 2: Base Assembly

Fix metal/base feet to the screen panel using supplied bolts.
Tighten all screws securely.

Step 3: Positioning

Place partition in marked position.
Adjust leveling glides (if provided) for stability.

Step 4: Panel Connection (If Multiple Panels)

Join panels using connector brackets or linking clips.
Ensure alignment and stability.

Floor-Mounted / Semi-Permanent Type

Step 1: Mark & Drill

Mark fixing points on floor.
Drill holes and insert anchor fasteners.

Step 2: Fix Base Channel / Frame

Secure base frame to floor using anchor bolts.
Ensure proper alignment.

Step 3: Install Acoustic Panels

Insert or screw panels into frame system.
Tighten all connections.

Ceiling-Supported Type (If Applicable)

Fix top channel to ceiling using anchor fasteners.
Secure partition panel between floor and ceiling channels.
Check vertical alignment and stability.

9MM

12MM
